Features

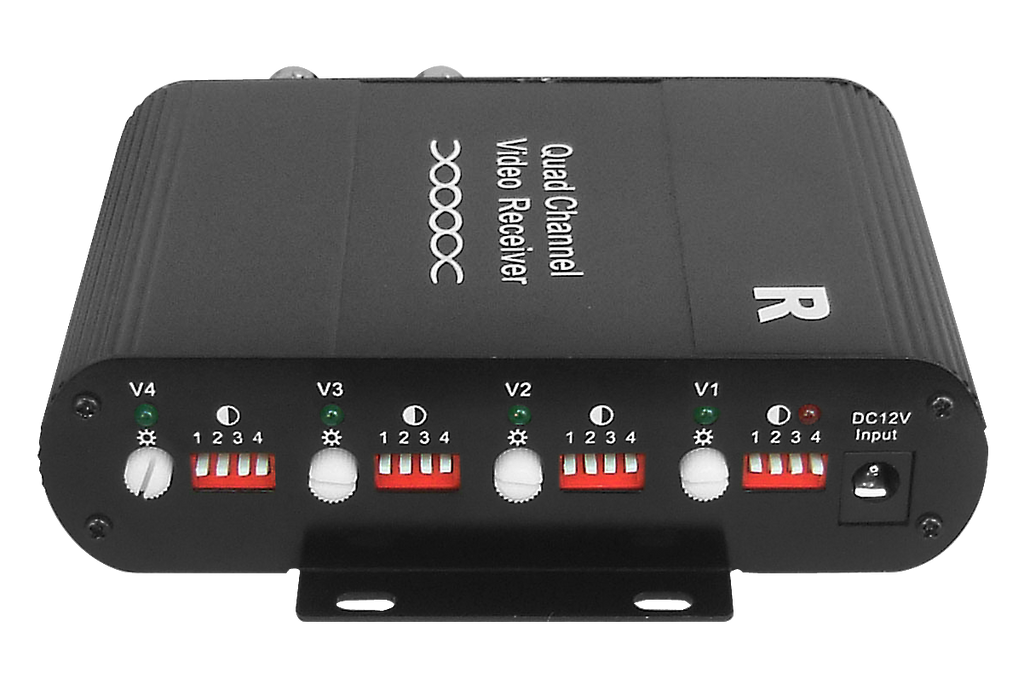

- Transceiver Type: 4CH Video Receiver(Active)
- Video: Frequency Response Range: DC-6MHz: Common-Mode/ Differential-Mode rejection: 15KHz-6MHz 60dB type
- Wire Type: 24AWG UTP CAT5 or higher: DC loop resistance ≦18Ω/ 100m; Differential capacitance: 62pF/m (max)
- Impedance: UTP or Connection or RJ-45: 100Ω; BNC Coax:75Ω
- Power: 12V <300mA
- Transient Protection: 6KV 10 x 700 us IEC61000-4-5
- Dimensions: 4.72" x 3.27" x 1.26"
- Weight (lb): 0.44
