HIKVISION

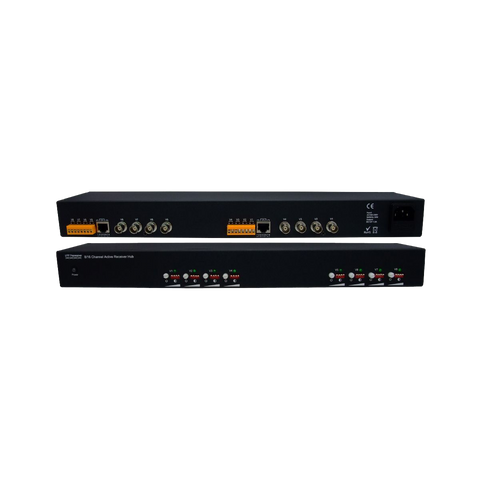

EV08P-1U | 8CH Passive Transceiver Hub

Transceiver Type: 8CH Video Transceiver(Passive)
Video: Frequency Response Range: DC-6MHz: Common-Mode/ Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type: 24AWG UTP CAT5 or higher: DC loop resistance ≦18Ω/ 100m; Differential capacitance: 62pF/m (max)
Impedance: UTP or Connection or RJ-45: 100Ω; BNC Coax:75Ω
Power: N/A
Transient Protection: N/A
Dimensions: 17" x 3.3" x 1.7"
Weight (lb): 2.3
