HIKVISION

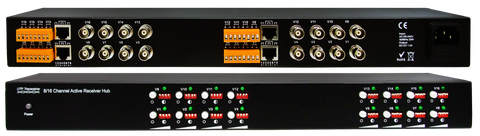

EV16AR-1U | 16CH Active Receiver Hub

Transceiver Type: 16CH Video Receiver (Active)
Video: Frequency Response Range: DC-6MHz: Common-Mode/ Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type: 24AWG UTP CAT5 or higher: DC loop resistance ≦18Ω/ 100m; Differential capacitance: 62pF/m (max)
Impedance: UTP or Connection or RJ-45: 100Ω; BNC Coax:75Ω
Power: AC100-240V 50/60Hz
Transient Protection: 6KV 10 x 700 us IEC61000-4-5
Dimensions: 17" x 3.3" x 1.7"
Weight (lb): 2.9
