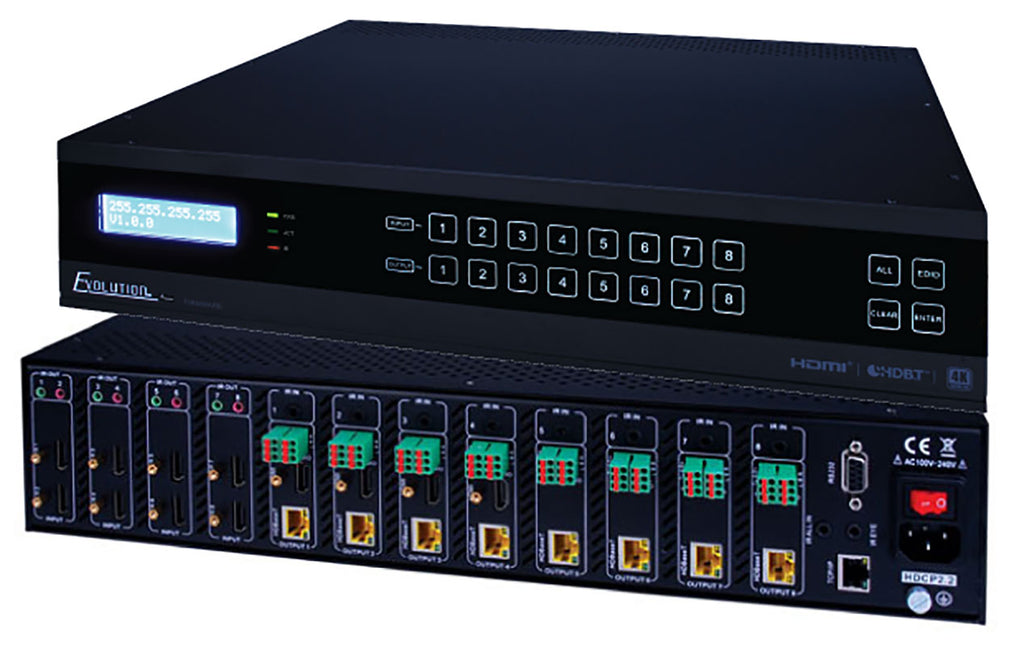

Evolution HDBaseT™ 4K 8×8 Matrix Selector Switch

4K HDBaseT 8×8 Matrix Selector Switch that accommodates 8 HDMI inputs- 8 HDBaseT outputs with 4 mirrored HDMI outputs- and 8-analog audio outputs- with IR RS232 zone as well as IR- RS232 and IP control for the matrix
Supports 4Kx2K @ 60Hz & 1080p 3D signals
Transmits 4Kx2K signal for 26 ft (8m) via HDMI port and 131 ft (40m) via HDBaseT port
Transmits 1080p signal 230 ft (70m) via HDBaseT port
Features POC (Power over Cable) technology- providing power for the receivers – Receivers sold separately- Part # EVRXHD1
HDCP 2.2 compatible- supports manual HDCP management and auto-detecting
Powerful EDID management and EQ
LCD screen shows real-time I/O connection status- switching status- HDCP status- and output resolution
Controllable via touch-screen front panel- RS232- IR and TCP/IP
Supports bi-directional IR & RS232 control
Built-in GUI for TCP/IP control
Features off memory for reliable operation – input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
Features a Micro USB port for Firmware upgrades
Easy installation with rack-mounting design
Dimensions: 17.2” W x 3.5” H x 15.3” D
